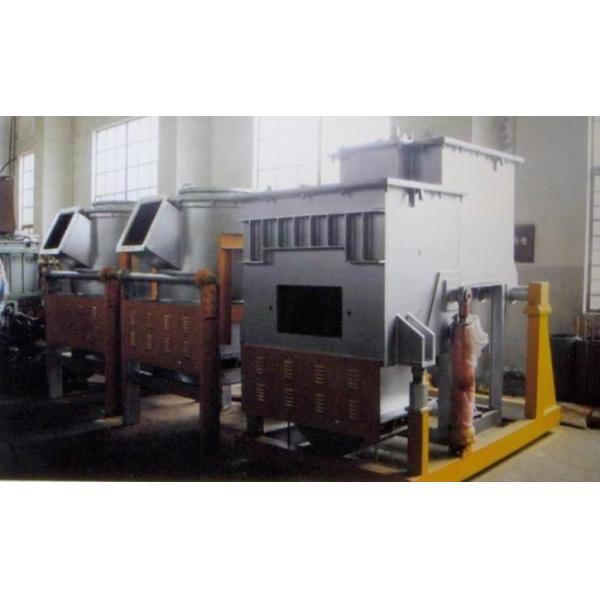

Melting Continuous Casting Machine With Electric Control System Holding Furnace

1. Equipment composition

This machine consists of combined melting-holding furnace (or separate melting and holding furnace), crystallizer, water cooling system, withdrawal system, online sawing unit, a saw for mould changing, hydraulic furnace tilting system and electric control system.

2. Feature

The melting furnace and holding furnace can either be combined into one unit or separate from each other, depending on the material to be produced.

Combined furnaces: It will use jet flow type inductors. In order to control the composition of the melt, a graphite plug and a channel made of silicon carbide will be installed between the two furnace chambers to prevent the melt from losing heat and absorbing the air. So the product quality will be stabilized and enhanced. The metal loss and energy consumption will be reduced.

Separate furnaces: Between the melting furnace and holding furnace, there is a launder, through which the molten metal flows from the melting furnace into the holding furnace.

3. Specifications

Rod diameter: 10-300mm

Rod length: ≥1000mm

Strand quantity: 1-4

Materials: Copper alloys, copper-nickel, dhp copper, etc.

Production capacity: 20,000ton/year

Operators needed: 1-2 per shift
