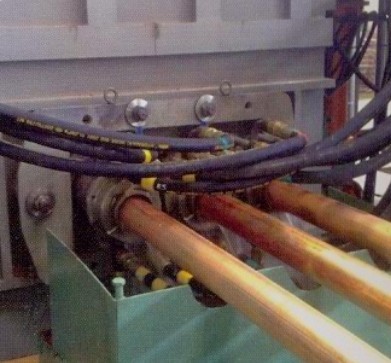

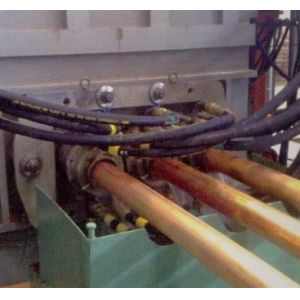

Melting Furnace Continuous Casting Machines With Water Cooling System Machine

1. Equipment composition

This machine consists of melting furnace, crystallizer, water cooling system, withdrawal system, online sawing unit, a saw for mould changing, hydraulic system and electric control system.

2. Feature

A typical mains frequency furnace adopts a new combination structure of melting-casting with metal flowing under surface. The inductor adopts a vertical structure with silicon sheets imported. As the molten metal flows from the melting furnace to the holding furnace under the surface, the heat emission (that would be otherwise caused) is avoided so as to reduce the energy consumption. Meantime, the metal loss is also reduced. As the exposure of the molten metal to the air is substantially reduced, the product quality can be stabilized and enhanced. The parameters of the melting-holding furnace like voltage, amperage, effective power and compensation factor are indicated with signals. The metal temperature in the furnace is continuously measured and displayed. Also indicated are the temperatures and pressures for the water for cooling the inductor coils, wrapping sleeves and cables with necessary optic and acoustic alarms equipped.

3. Specifications

Outside diameter: 55-150mm

Tube wall thickness: 25mm

Tube length: 5-25m

Strand quantity: 1-3

Materials: T2, DHP

Production capacity: 20,000ton/year

Operators needed: 1-2 per shift
